Waterproof GPS And GSM Vehicle Tracker

  • Internal High Gain GSM Antenna
  • Internal High Gain GPS/GLONASS Antenna
  • GPS/GLONASS And I/O Data Acquisition

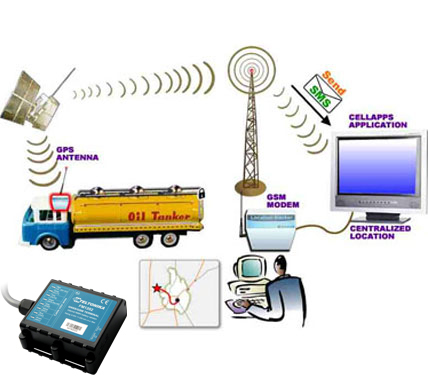

  • Real Time Tracking
  • Smart Data Acquisition (based On Time, Distance, Angle, Ignition And Events
  • Sending Acquired Data Via GPRS (TCP/IP And UDP/IP Protocols)
  • Smart Algorithm Of GPRS Connections (GPRS Traffic Saving)
  • Events On I/O Detection And Sending Via GPRS Or SMS.
  • Scheduled 24 Coordinates SMS Sending
  • Deep Sleep Mode (less Power Consumption)
  • Motion Sensor
  • Small And Easy To Mount Case
Download Brochure

GSM:

  • Quad-band 900/1800 MHz; 850/1900 MHz
  • GPRS class 10 (up to 85,6 kbps);
  • SMS (text/data)
GPS:

  • NMEA, GGA, GGL, GSA, GSV, RMC, VTG protocol compatible
  • 32 channel GPS/GLONASS receiver
  • -161 dBm sensitivity
Interface:

  • 1 Digital Input Reserved for Ignition Status Monitoring
  • 2 Digital Inputs
  • 1 Analog Input (10V or 30V range)
  • 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
  • 1-Wire® protocol
  • Power supply (+6...+30)VDC
  • 2 Status LEDs
  • Configuration and firmware upload (FOTA and via cable)
