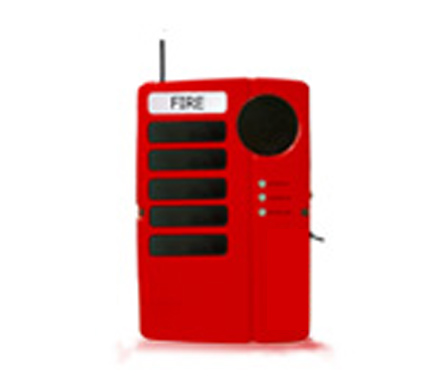

Addressable Sounder

  • Wire-free Operation
  • Fully Addressable
  • Flashing Window For Visual Indication
  • Electronic Addressing
  • Can Be Used As Local Panel
  • Remote Silence/local Silence Facility
Primary supply15V, 1A DC Adapter
Secondary Supply12V, 1.3A DC
Operating Voltage12V DC
Quiescent current28mA
Signal transmission current108mA
Alarm output87dB
Carrier frequency433.92MHz
Operating Temperature0°C to +50°C
CompatibilityALAW2XV1 Protocol
Storage Temperature-30°C to +70°C
Humidty0 to 95% RH (Non-condensing)
DimensionsHeight - 190mm
Width - 126mm
Depth - 56mm
Weight850g
colorRed
MaterialABS
