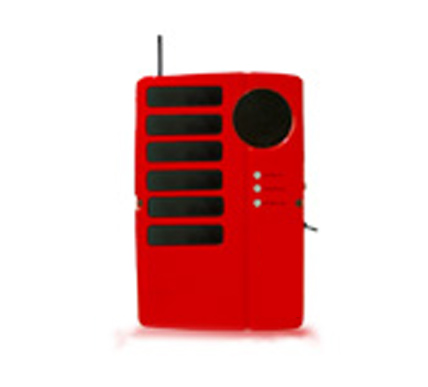

Addressable Signal Repeater Unit

  • Fully Addressable
  • Wire-free Operation
  • Extends The Range Of Remote Devices
  • Electronic Addressing
  • Low Battery And Data Reception LED Indication
Primary supply15V, 1A DC Adapter
Secondary Supply12V Battery, 1.3A DC
Operating Voltage12V DC
Quiescent current41mA
Signal transmission current25mA
Carrier frequency433.92MHz
Operating Temperature-10°C to +60°C(Non-condensing or Icing)
CompatibilityALAW2XV1 Protocol
Storage Temperature-30°C to +70°C(Non-condensing or Icing)
Humidty0 to 95% RH (Non-condensing)
DimensionsHeight - 190mm
Width - 126mm
Depth - 56mm
Weight780g
Device housingRed ABS
