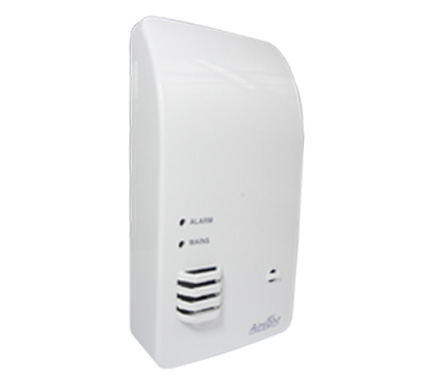

Standalone LPG Detector

  • Low Profile Design That Blends In With Any Interior
  • Indoor Use And Wall Mountable
  • Easy To Install, Sleek And Compact
Electrical Specifications
Power Supply230V AC, 50/60 Hz
Power Consumption1W
SensitivityButane LED:1.8 vd% (or)
HEL(UEL):8.4 vd%
Propane LED:2.1 vd% (or)
HEL(UEL):9.5 vd%
Methane LED:5.0 vd% (or)
HEL(UEL):15 vd%
Detection DistanceLPG - 30cm above the ground on the wall Coal gas, Natural gas - 30cm below ceiling
Indications
Warmup ModeFlashing Green LED
Standby ModeBlinking Green LED
Alarm ModeRed LED steady glow
General Specifications
CompatibiltyALAA2XV1 Protocol
Operating temperature0°C to 49°C
Storage Temperature5°C to 40°C
Humidty0 to 95% RH (Non-condensing)
colorWhite
HousingPolycarbonate
Mechanical Specifications
Dimensions(DiaxH)130x75x40mm
Weight220g
