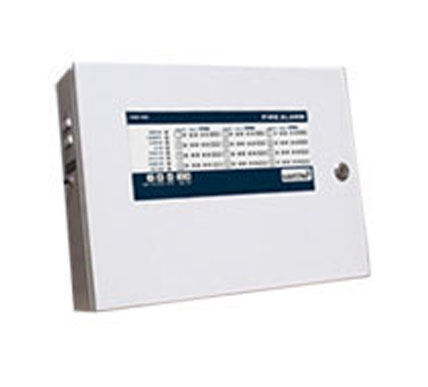

12 Zone Fire Alarm Panel

  • Two Level Password Protection
  • Built-in Battery Charger
  • 12 Zonal Alarm LED
  • Contamination Level Alert For Maintenance
  • Alarm Verification Feature
  • Smoke Detector Contamination Alarm
  • No Shielded Or Twisted Pair Cable Required.Standard 2x1.5 Sq.mm Cable Can Be Used.
Primary power supply230V +/- 10% AC,50Hz
Standby power supply28V DC(2nos of 12V 7Ah SMF battery)
Battery charging voltage27.5 +/- 1V
Normal current143mA
Battery charging current500mA(max.)
Programmable relay contact4 sets
Relay contact rating5 Amps 30V DC
Operating temperature-10°C to +60°C(Non-condensing or icing)
Storage temperature-30°C to +70°C(Non-condensing or icing)
Humidity0 to 95% RH (Non-condensing)
Wiring2 core
DimensionsHeight - 4300mm
Width - 300mm
Depth - 100mm
Weight6.656Kg
Device housing18guage sheet metal powder coated
