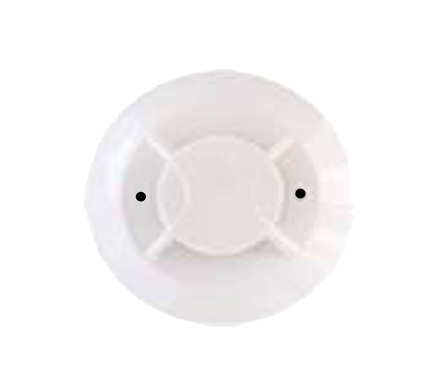

Multisensor

  • Intelligent Detector
  • Electronic Addressing
  • Low Profile Design That Blends In With Any Environment.
  • Easy To Identify The Contaminated Detector
  • Remote Test Facility From The Panel
  • Remote Sensitivity Alteration From The Panel
  • Insect-resistant Screening
  • Common Mounting Base
  • Easy To Maintain/service
Operating Voltage17-24V DC
Quiescent current0.6mA
Alarm current0.8mA
Alarm indicator Red LED
SensitivityNominal alarm threshold of 0.13dB/m obscuration
Compatibility ALAA2XV1 protocol
Operating temperature-10°C to +60°C(Non-condensing or icing)
Storage temperature-30°C to +70°C(Non-condensing or icing)
Humidity0 to 95% RH (Non-condensing)
Dimensions(DiaxH)Detector - 100x43mm
Detector with base - 100x51mm
WeightDetector - 72g
Detector with base - 114g
Base - 42g
Detector housingWhite polycarbonate
TerminalsBrass with Nickel plating
