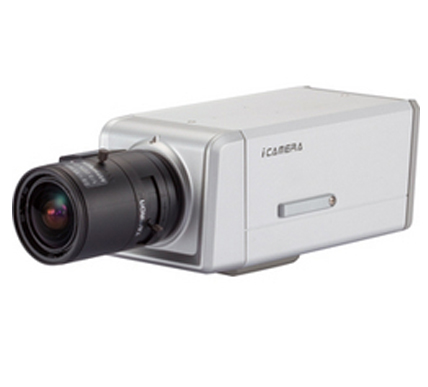

IPC F665P

  • 1/3” 540TVL Super HAD CCD
  • H.264 & Dual-stream Encoding
  • 25/30fps@ D1/HD1/CIF/VGA
  • Auto Iris, SD Card
  • Wi-Fi(optional), DC12V, PoE
  • Material: Metal
Download Brochure
FeatureSpecification
BrandDahua Technology
Model CodeIPC-F665P
Chip Inch Size1/3
Colour TypeColour / Monochrome
Digital (DSP)Yes
Specialist TypeNetwork
Sensitivity Lux0.2
Auto IrisYes
Lens MountC/CS
Back Light CompensationYes
Auto Gain ControlYes
White BalanceYes
Electronic Shutter Range1/25~1/10000s
S/ N (Signal/ Noise) Ratio dB>5050
Electrical SpecificationsVoltage: 12 V DC
Power Consumption:<5W
Y/ C (Video Output)1 channel, BNC(1.0Vp-p, 75 ohms)
Compression TypeH.264
Network PropertiesInterface: RJ-45 (10/100Base-T)
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter,
Physical SpecificationsWeight g: 650
Dimensions mm: 69 ×139 × 58
Environmental SpecificationsOperating Temperature oC: -10 ~ +55
Operating Humidity %: 10 ~ 90
