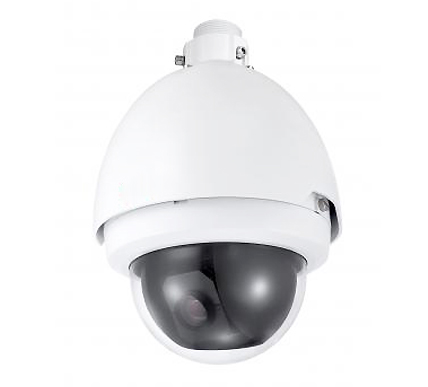

SD6582C HN

  • Powerful 30x Optical Zoom(4.3mm~129mm)
  • H.264 & MJPEG Dual-stream Encoding
  • Max 25/30fps@1080p Resolution
  • Defog, DWDR, Day/Night(ICR), DNR (2D&3D),Auto Iris, Auto Focus, AWB, AGC,BLC
  • Multiple Network Monitoring: Web Viewer, CMS(DSS/PSS) & DMSS
  • Up To 255 Presets, 5 Auto Scan, 8 Tour, 5 Pattern
  • Built-in 7/2 Alarm In/out, Micro SD Memory
  • Support Intelligent 3D Positioning With DH-SD Protocol
  • Max 400 °/s Pan Speed, IP67, Easy Installation
Download Brochure
ModelDH-SD6582C-HN
Camera
Image Sensor1/3” Exmor CMOS
Effective Pixels 1944(H) x 1092(V), 2 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed1/1 ~ 1/30,000s
Min. IlluminationColor: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6
S/N RatioMore than 50dB
Video OutputBNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / DWDR (Digital WDR)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise Reduction2D / 3D
Privacy MaskingUp to 24 areas
Digital Zoom16x
DefogOn / Off
Lens
Focal Length4.3mm ~ 129mm(30x Optical zoom)
Max ApertureF1.6 ~ F5
Focus ControlAuto / Manual
Angle of View58.9°~ 2.1°
Close Focus Distance10mm ~ 1200mm
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control SpeedPan: 0.1° ~ 300°/s;
Tilt: 0.1° ~250°/s
Preset SpeedPan: 400°/s; Tilt: 300°/s
Preset80(DH-SD), 255(Pelco-P/D)
PTZ Mode5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed SetupHuman-oriented focal length/ speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Video
CompressionH.264 / MJPEG
Resolution1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
Frame RateMain Stream1080P/720P(1 ~ 25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
CompressionG.711a / G.711u (32kbps) / PCM (128kbps)
Interface1/1 channel In/Out
Network
EthernetRJ-45 (10/100Base-T)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF Ver. 2.0 conformance
Max. User Access20 users
Smart PhoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotMicro SD, Max 32GB
RS4851
Alarm7/2 channel In/Out
General
Power SupplyAC 24V/3A (±10%) / DC12V optional
Power Consumption15W, 40W(Heater on)
Working Environment-40ºC ~ 60ºC / Less than 90% RH
Protection LevelIP67, IK10 optional
DimensionsΦ222(mm) x 322(mm)
Weight5.0kg
