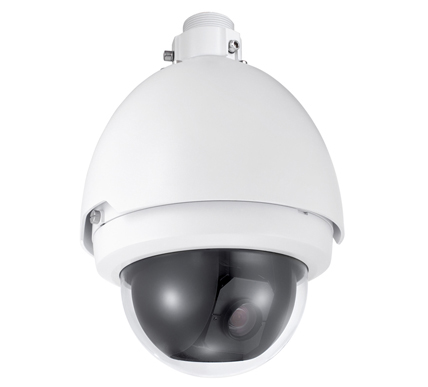

SD6582A HNI AutoTracking Camera

  • 4.7mm ~ 94.0mm(20x)optical Zoom
  • H.264 & MJPEG Dual-stream Encoding
  • Max 25/30fps@1080p Resolution
  • WDR(DWDR), Day/Night(ICR), DNR (2D&3D),Auto Iris, Auto Focus, AWB, AGC,BLC
  • Network Monitoring: Web Viewer, CMS(DSS/PSS) & DMSS
  • Max 400 °/s Pan Speed, 360° Endless Pan
  • Up To 255 Presets, 5 Auto Scan, 8 Tour, 5 Pattern
  • Built-in 7/2 Alarm In/out
  • Support Intelligent 3D Positioning With DH-SD Protocol
  • Micro SD Memory, IP67, Easy Installation
Download Brochure
ModelSD6582A-HNI
Camera
Image Sensor1/3” progressive scan Exmor CMOS
Effective PixelsApprox. 2 Megapixels
Lens20x optical zoom
f=4.7mm(Wide)~94.0mm(Tele),
F1.6~F3.5
Digital Zoom16x
Horizontal Viewing Angle55.4°(Wide)~2.9°(Tele)
Min. Object Distance10mm(wide)~1000mm(Tele)
Min. IlluminationColor: 0.05Lux at F1.6;
B/W: 0.005Lux at F1.6
Electronic Shutter1/1 ~ 1/30,000s
White BalanceAuto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp Fix/Auto, Manual
WDRDWDR (Digital WDR)
Day/NightAuto(ICR) / Color / B/W
S/N RatioMore than 50 dB
Privacy MaskingON/OFF (up to 24 privacy masking areas)
Analog Video OutputBNC(1.0Vp-p / 75Ω), PAL / NTSC
Video & Audio
Video CompressionH.264 / MJPEG
Image Resolution1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
Encoding SpeedMain StreamPAL: 1080P / 720P(1~25fps)
NTSC: 1080P / 720P(1~30fps)
Extra StreamPAL: D1 / CIF (1~25fps)
NTSC: D1 / CIF (1~30fps)
Bit Rate32K~8Mbps
Audio CompressionG.711a(32Kbps) / AMR(10.2Kbps)
Audio ModeOff / Audio input / Audio output
Dome Drive
Pan/Tilt RangeHorizontal: 0°~360°endless, Vertical: -2°~90° auto flip 180° to continue monitor
Manual Control SpeedHorizontal: 0.1°~300°/s, Vertical: 0.1°~150°/s
Preset SpeedHorizontal: 400°/s, Vertical: 300°/s
Preset255
3D PositioningYes
Speed SetupHuman-oriented focal Length/ speed adaptation
Info DisplayTime, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc.
Power Up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate preset/scan/tour/ patter if there is no command in the specified period.
Time TaskAuto activation of Preset/Scan/Tour/ Pattern by preset-time
Alarm2/1 alarm input/output (7/2 optional),
Triggering preset/Tour/Pattern/Scan//Alarm output
Protocol Pelco-P/D, Auto recognition of general protocols
Intelligent Function
Auto TrackingSingle-scene, multiple-scene, panorama-scene
IVCTripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
Tracking Trigger ModeManual / Auto (alarm triggered)
Tracking Trigger EventTargeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.
Network
EthernetRJ-45 (10/100Base-T)
Network FunctionIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF
