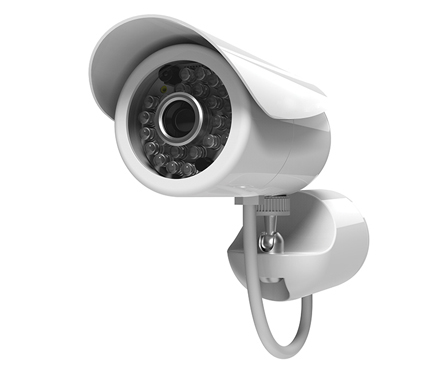

Y Cam Bullet HD 720

  • Easy Wi-Fi Setup With WPS + Wi-Fi N
  • ONVIF 2.0 Compatible
  • Highly Compatible
  • Crisp And Clear Audio
  • Cable-managed Wall Mount
  • Small And Sleek Camera Design
  • Use Anywhere
  • Record To Internal MicroSD, Up To 64Gb
Download Brochure
Camera
Image device1/4″ CMOS, 1 Megapixel
Resolution1280×720 (HD 720p)
Pixels921,600
White Balance, Exposure, GainAuto
Viewing angleHorizontal: 62.5°, Vertical: 36.5°
Focal lengthf=3.2mm
ApertureF2.5
Min.Illumination1.0 Lux
Infrared LED24
Night Vision Distance10m
IR Cut FilterYes
Image compressionH.264, MPEG-4, MJPEG
Max. frame rate30fps @ 1280×720
Audio compressionAAC
Built-in microphoneBuilt-in electret microphone
Network
AuthenticationID/Password, Admin/User (Up to 64)
Network protocolsTCP, UDP, IP, ARP, ICMP, DHCP, DNS, HTTP, FTP, SMTP, NTP, PPPoE, UPnP, DDNS
Stream TypeHTTP, RTSP/RTP/RTCP, 3GPP
Network connection10BASE-T/100BASE-TX
Power over Ethernet (PoE)Yes
Wireless LAN
Wireless technologyIEEE802.11b/g/n
Frequency2.412-2.462GHz
Transmission speed150Mbps/54Mbps/22Mbps/11Mbps/5.5Mbps/2Mbps/1Mbps (Auto Switch)
SecurityWEP (64/128 bit), WPA-PSK(AES/TKIP), WPA2-PSK(AES/TKIP)
Wi-Fi Protected Setup (WPS)Yes
MicroSD slotUp to 64 Gb, min Class 4
General
Power requirementsDC 12V, 1A, 100-240V AC, 3.75W
Operating temperature-5 to +45 °C (+22 to +113 °F)
Storage temperature-20 to +60 °C (-4 to +140 °F)
Operating humidity20-80%RH (Non-condensing)
Storage humidity20-95%RH (Non-condensing)
Dimensions (WxDxH)60mm x 170 x 110mm
Weight410g / 14.5 oz
What’s in the box
  • Y-cam Bullet HD camera
  • Wall mount with cable management
  • 1m/3ft network (Ethernet cable) (for setup only)
  • 3m/10ft power supply with UK/US/EU plugs
  • 2 x screws and anchors for fixing
  • Screw, grommet and Allen key for wall mount
  • Quick start guide
Setup & Requirements
RequirementsPC, Mac or Linux computer with a web browser
Network port – network/Ethernet port (required for setup only)
Network connectivity – Wi-Fi 802.11 b/g/n (WPA2 recommended) or network/Ethernet
RecommendationsComputer – 1GHz Processor with 512MB ram
Monitor – SVGA Monitor (800 x 600 resolution)
Browser – IE7, Chrome 16, Firefox 8, Safari 5
High Speed Internet – Broadband, ADSL, DSL, Cable, FiOS with upload speed of 512Kbps (for remote access)
Compatible Systems
Synology, Qnap, Asustor & more
This Y-cam is designed for indoor or outdoor use, and is weatherproof to IP66 standards.
