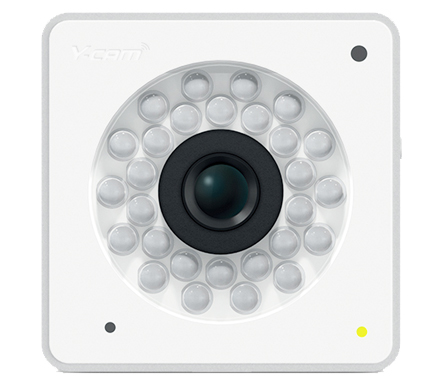

Y Cam Cube

  • Small And Sleek
  • 24/7 Protection
  • Detection & Alarms
  • H.264 Compression
  • Wi-Fi N
  • MicroSD Recording
  • Advanced Compatibility
  • Simple & Secure
  • Wi-Fi Protection Setup
Download Brochure
Camera
Image device1/4″ CMOS
Pixels310,000
White BalanceAuto
Exposure modeAuto
GainAuto
Viewing angleHorizontal: 60°, Vertical: 43°
Focal lengthf=3.6mm
ApertureF2.0mm
Min.Illumination1.0 Lux
Infrared Night VisionIR LEDs x 30 (Auto/Manual)
Night Vision DistanceUp to 15m with IR cut filter
MicroSD SlotYes, up to 64 Gb
Network
Image compressionH.264, MPEG4, MJPEG
Image resolution640×480 (VGA), 320×240 (QVGA), 160×120 (QQVGA)
Max. frame rate30fps @640×480
Audio compressionAAC
Built-in microphoneElectret Condenser Microphone
Simultaneous viewers16
AuthenticationID/Password, Admin/User (Up to 64)
Network protocolsTCP, UDP, IP, ARP, ICMP, DHCP, DNS, HTTP, FTP, SMTP, NTP, PPPoE, UPnP, DDNS
Stream TypeHTTP, RTSP/RTP/RTCP, 3GPP
Network connectionEthernet (10BASE-T/100BASE-TX)
Power over Ethernet (PoE)Optional accessory
Wireless LAN
Wireless technologyIEEE802.11b/g/n
Frequency2.412-2.462GHz
Transmission speed150Mbps/54Mbps/22Mbps/11Mbps/5.5Mbps/2Mbps/1Mbps (Auto Switch)
SecurityWEP (64/128 bit), WPA-PSK(AES/TKIP), WPA2-PSK(AES/TKIP)
General
Power requirementsDC 12V
Power consumption3.75W
Operating temperature-5 to +45 °C (+22 to +113 °F)
Storage temperature-20 to +60 °C (-4 to +140 °F)
Operating humidity20-80%RH (Non-condensing)
Storage humidity20-95%RH (Non-condensing)
Dimensions (WxDxH)65mm x 65mm x 30mm
Weight80g / 2.8 oz
Package ContentsY-cam Cube camera, stand, AC adapter UK/EU/US, setup CD & guide, network cable
PC system minimum requirements
Operating systemWindows XP, Vista, Windows 7, Windows 8
ProcessorIntel Pentium III, 1GHz or Higher
Memory256MB RAM Minimum
Web browserInternet Explorer 7, Google Chrome, Firefox 5 and Safari 5 or later.
Mac system minimum requirements
Operating systemMac OSX 10.4 (Tiger)
Processor800MHz – PowerPC G4 or Intel
Memory128Mb RAM (256Mb recommended)
Web browserInternet Explorer 7, Google Chrome, Firefox 5 and Safari 5 or later.
