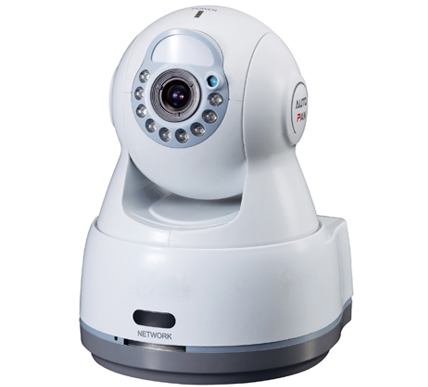

IPC A7 I

  • 1/4” VGA CMOS
  • H.264 Dual-stream Encoding
  • 30fps@VGA (640×480)
  • Day/Night(ICR), 2DNR, AWB, AGC, BLC
  • Multiple Network Monitoring: Web Viewer, CMS(DSS/PSS) & DMSS
  • 4.3mm Fixed Lens
  • Max. IR LEDs Length 10m
  • PIR Sensor Range 5m
  • SD Memory
Download Brochure
ModelDH-IPC-A7-IDH-IPC-A7W-I
Camera
Image Sensor1/4” VGA CMOS
Effective Pixels640(H)x480(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/25~1/10000 (PAL)
Auto/Manual 1/30~1/10000 (NTSC)
Min. Illumination0.2lux/F1.4(color),0.1Lux/F1.4(B/W),0Lux(IR on)
S/N Ratio50dB
Video OutputExternal
Camera Features
Max. IR LEDs Length10m
Day/NightAuto(Electronic) / Color / B/W
Backlight CompensationBLC
White BalanceAuto
Gain ControlAuto
Noise Reduction2D
Privacy MaskingFour privacy zone
Lens
Focal Length4.3mm
Max ApertureF1.8
Angle of ViewH:52°
Mount TypeBoard-in Type
Video
CompressionH.264
ResolutionVGA(640×480) / CIF(352×288 / 352×240) / QVGA(320×240) / QCIF(176×144 /176×128 ) / QQVGA(160×120)
Frame RateMain StreamVGA/CIF/QCIF/QVGA/ (1 ~ 25/30fps)
Sub StreamQCIF/QVGA/QQVGA(1 ~ 25/30fps)
Bit RateH.264: 32K ~ 3072Kbps
Audio
CompressionG.711a / G.711u (64kbps)/ PCM(128kbps)
Resolution1/1 channel In/Out/ Build-in Mic
Network
EthernetRJ-45 (10/100Base-T)RJ-45 (10/100Base-T), Wi-Fi 802.11b/g
ProtocolIPv4, HTTP, SSL, TCP/IP, UDP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter,
ONVIFONVIF Ver. 2.0
Max. User Access10 Users
SmartphoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotSD, Max 32GB
PIR Sensor RangeUp to 5meters
AlarmExternal wireless alarm box
General
Power SupplyDC5V
Power Consumption<4W
Working Environment-10°C~+50°C, 10%~90%
Dimensions102mm×106mm×138mm
Weight0.34Kg
