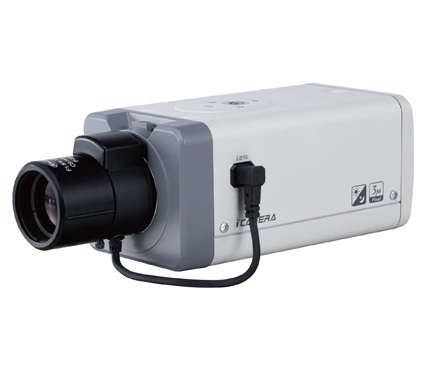

IPC HF3300P

  • 1/2.8” 3Megapixel Progressive Scan Exmor CMOS
  • H.264 & MJPEG Dual-stream Encoding
  • Max 20fps@3.0M(2048×1536)&25/30fps@1080P(1920×1080)
  • DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC
  • Multiple Network Monitoring: Web Viewer, CMS(DSS/PSS) & DMSS
  • Built-in 1/1 Alarm In/out
  • PoE( Not For –W Series); Wi-Fi(-W Only)
  • SD Memory
Download Brochure
ModelIPC-HF3300PIPC-HF3300P-WIPC-HF3300NIPC-HF3300N-W
Camera
Image Sensor1/2.8” 3Megapixel Exmor CMOS
Effective Pixels2096(H)x1561(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual,1/3~1/10000sAuto/Manual,1/4~1/10000s
Min. IlluminationColor: 0. 2Lux/F1.2, B/W: 0.01Lux/F1.2
S/N Ratio>50dB
Video Output1 channel, BNC(1.0Vp-p, 75?)
Camera Features
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto
Gain ControlAuto / Manual
Noise Reduction2D
Privacy MaskingUp to 4 areas
Lens
Mount TypeC/CS
Video
CompressionH.264 / MJPEG
Resolution3.0M(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288)3.0M(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240)
Frame RateMain Stream3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 24576Kbps
Audio
CompressionG.711a / G.711u(64kbps) / PCM(128kbps)
Interface1/1 channel In/Out
Network
EthernetRJ-45 (10/100Base-T)
WifiN/A802.11b/gN/A802.11b/g
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF Ver. 2.0
Max. User Access10 Users
SmartphoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotSD, Max 32GB
RS4851
Alarm1/1 channel In/Out
General
Power SupplyDC12V/AC24V,
PoE(802.3af)		DC12V/AC24VDC12V/AC24,
PoE(802.3af)		DC12V/AC24V
Power Consumption<6W
Working Environment-10°C~+60°C, 10%~90%
Dimensions70mm×149.5mm×63.2mm
Weight650g
