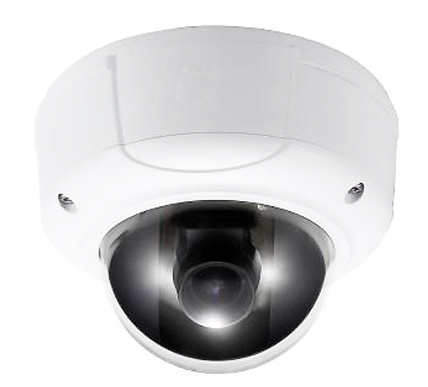

IPC HDB3300P

  • 1/2.8” 3Megapixel Progressive Scan Exmor CMOS
  • H.264 & MJPEG Dual-stream Encoding
  • Max 20fps@3.0M(2048×1536)&25/30fps@1080P(1920×1080)
  • DWDR, Day/Night(ICR), 2DNR, Auto Iris, AWB, AGC, BLC
  • Multiple Network Monitoring: Web Viewer, CMS(DSS/PSS) & DMSS
  • 3.3~12mm Varifocal Lens
  • -in 2/1 Alarm In/out
  • SD Memory, IP66, IK10, PoE,
Download Brochure
ModelDH-IPC-HDB3300PDH-IPC-HDB3300N
Camera
Image Sensor1/2.8” 3Megapixel Exmor CMOS
Effective Pixels2096(H)x1561(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3~1/10000Auto/Manual 1/4~1/10000
Min. IlluminationColor: 0. 2Lux/F1.4, B/W: 0.01Lux/F1.4
S/N Ratio>50dB
Video Output1 channel, BNC(1.0Vp-p, 75?)
Camera Features
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto
Gain ControlAuto / Manual
Noise Reduction2D
Privacy MaskingUp to 4 areas
Lens
Mount TypeC/CS
Focal Length3.3~12mm
Max ApertureF1.4
Focus ControlManual
Angle of ViewH: 79.3°(Wide)~29.8°(Tele)
Lens TypeManual / Auto Iris (DC)
Mount TypeCS
Video
CompressionH.264 / MJPEG
Resolution3.0M(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288) /3.0M(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240) /
Frame RateMain Stream3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 24576Kbps
Audio
CompressionG.711a / G.711u (64kbps) / PCM(128kbps)
Interface1/1 channel In/Out
Network
EthernetRJ-45 (10/100Base-T)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF Ver. 2.0
Max. User Access10 Users
SmartphoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotMicro SD, Max 32GB
Alarm2/1 channel In/Out
General
Power SupplyDC12V/AC24V, PoE(802.3af)
Power Consumption<10W
Working Environment-10°C~+60°C, 10%~90%
Protection LevelIK10 & IP66
DimensionsΦ160mm×118.5mm
Weight1.25kg
