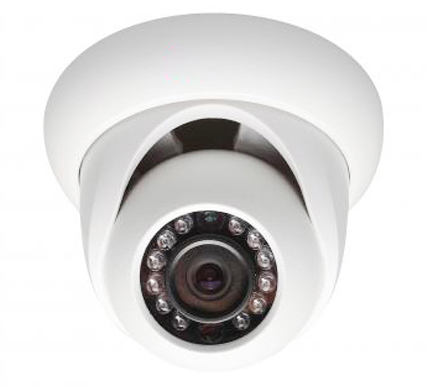

IPC HDW3200S

  • H.264 & MJPEG Dual-stream
  • 1/3” 2Megapixel Progressive Scan Exmor CMOS
  • 25/30fps@1080P(1920×1080
  • DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC
  • Multiple Network Monitoring: Web Viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm Fixed Lens (6mm Optional)
  • Max. IR LEDs Length 20m
  • IP66, PoE
  • IP66, PoE
Download Brochure
ModelDH-IPC-HDW3200SPDH-IPC-HDW3200SN
Camera
Image Sensor1/3” 2Megapixel Exmor CMOS
Effective Pixels1920(H)x1080(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3~1/10000sAuto/Manual, 1/4~1/10000s
Min. Illumination0. 1Lux/F1.2 (Color), 0.01Lux/F1.2(B/W);0Lux/F1.2(IR on)
S/N Ratio>50dB
Camera Features
Max. IR LEDs Length20m
Day/NightAuto(ICR)/Color/B/W
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto
Gain ControlAuto / Manual
Noise Reduction2D
Privacy MaskingUp to 4 areas
Lens
Focal Length3.6mm (6mm optional)
Max ApertureF1.6
Angle of ViewH:70°(46°)
Lens TypeFixed lens
Mount TypeBoard-in Type
Video
CompressionH.264 / MJPEG
Resolution1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288)1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240) /
Frame RateMain Stream1080P/720P(1 ~ 25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 32K ~ 8192Kbps, MJPEG: 32K ~20480Kbps
Network
EthernetRJ-45 (10/100Base-T)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF Ver. 2.0
Max. User Access10 Users
SmartphoneiPhone, iPad, Android, Windows Phone
General
Power SupplyDC12V, PoE (802.3af)
Power Consumption<5W
Working Environment-10°C~+60°C, 10%~90%
Ingress ProtectionIP66
DimensionsΦ113mm×86mm
Weight0.4kg
