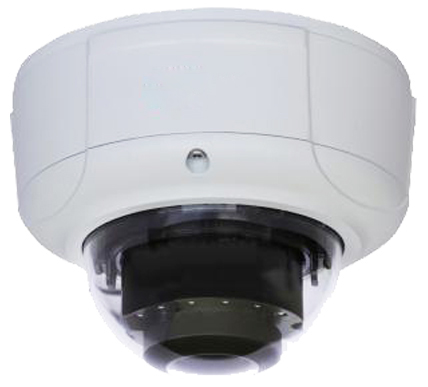

CA DBW480B

  • 1/3" SONY Super HAD CCD II & Effio-E DSP
  • High Resolution Of 700TVL
  • DWDR, Day/Night, 2DNR, Auto Iris, AWB, AGC,BLC, MD, Privacy Masking, Picture Adjustment
  • 4~9mm Vari-focal Lens (2.8~12mm Optional)
  • Max. IR LEDs Length 20m, Smart IR
  • OSD, DC12V(-A Model: DC12V/AC24V Dual Power Supply)
Download Brochure
ModelDH-CA-DBW480BP(-A)DH-CA-DBW480BN(-A)
Camera
Image Sensor1/3" SONY Super HAD CCD II
Effective Pixels976(H) x582(V), 570K pixels976(H) x 494(V), 480K pixels
Horizontal ResolutionColor: 700TVL, B/W: 750TVL
Electronic ShutterAuto:1/50s~1/100,000s,Manual:1/50s,1/120s,
1/250s,1/500s,1/1000s,1/2000s,1/4000s,1/10,000s		Auto:1/60s~1/100,000s, Manual:1/60s,1/100s,1/250s,
1/500s,1/1000s,1/2000s,1/4000s,1/10,000s
SynchronizationInternal
Min. Illumination0.005Lux@F1.4 (0Lux IR LED On)
S/N Ratio>65dB
Video Output1Vp-p Composite Output (75Ω/Aviator connector)
Camera Features
Max. IR LEDs Length20m, Smart IR
OSDEnglish, Chinese, French, German, Russian, Spanish, Portuguese, Japanese
Day/NightAuto(Electronic) / Color / B/W
Backlight CompensationBLC / HLC / DWDR
White BalanceAWB/AWB LOCK/CUSTOM 1/CUSTOM 2/ANTI CR CNT/MANUAL/ATW
Gain ControlAuto / Manual
Noise Reduction2D
Privacy MaskingUp to 4 areas
Picture AdjustmentMirror / Brightness / Contrast / Sharpness / Hue / Gain
Lens
Focal Length4~9mm (2.8~12mm optional)
Focus ControlManual
Lens TypeManual / Auto iris
Mount TypeΦ14
General
Power SupplyDC12V±10%(-A model: DC12V/AC24V dual power supply)
Power ConsumptionMax 4W
Working Environment-30°C~+60°C / 20%~80%RH
DimensionsΦ160mm × 118.5mm
Weight980g (-A: 1000g)
