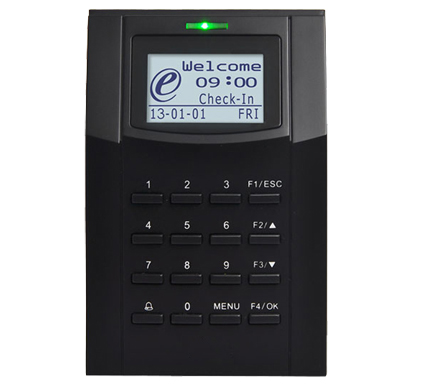

Kadex

  • Verification Through Card Or Password Or Even The Combination Of Two.
  • Perfect For Shift Workers, Can Be Programmed To Up To 50 Time Zones.
  • An External Alarm For Emergency Purpose During Unexpected Scenarios. Data Management Is Easy.
  • Shortcut Keys To Be Programmed To Commonly Used Functions.
Download Brochure
MODELKadexm-Kadex
SURFACE FINISHING Acrylonitrile Butadiene Styrene (ABS)Polycarbonate
TYPE OF SCANNER RFID antenna
MICROPROCESSOR 400 MHz
MEMORY8MB flash memory and 32MB SDRAM 4 MB flash memory & 32 MB SDRAM
ALGORITHM BioBridge VX 9.0
PRODUCT DIMENSION (L X W X H), mm 92 x 49 x 13792 x 29 x 134
STORAGE
Card30000
Transaction50000
ENROLLMENT & VERIFICATION
MethodsCard or PasswordCard
Card per user ID1
Reading distance (mm)40 ~ 80 (RFID, HID), 30 ~ 50 (Mifare)
Verification time (sec)< 1
CARD TECHNOLOGY
RFID: 64-bit, 125kHzYes
MIFARE: MFIS50/S70, 13.56MHzMade to order
HID: HID 1326, 26-bit, 125kHzMade to order
COMMUNICATIONS
MethodTCP/IP, RS232, RS485, USB disk
Baud Rates9600, 19200, 38400, 57600, 115200
Wiegand26-bit input/output
OPERATING ENVIRONMENT
Temperature (°C)0 ~ 45
Humidity (%)20 ~ 80
Power inputDC 12V 2A
TIME ATTENDANCE
Work CodesYesN/A
MULTIMEDIA
VoiceYesN/A
Short messagingYesN/A
ACCESS CONTROL
EM lock driving output DC 12V 3A / relay output
Alarm output NO / NC
Antipassback Yes
VOICE / DISPLAY LANGUAGE (TERMINAL)English (Standard), Arabic, Malay, Indonesian, Chinese (Traditional), Chinese (Simplified), Cantonese, Thai, Vietnamese, Korean, Spanish, Portuguese (Portugal), Portuguese (Brazil), Polish, French, Russian, German, Italian, Turkish, Persian, Slovak, Greek, Dutch, Hebrew, Romanian, Bulgarian. Other languages are available upon request.
SOFTWARE Ingress
