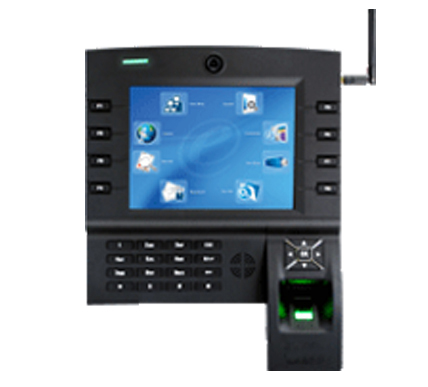

I Kiosk 100 Plus

  • Full Colour Mini TV Screen To Display Company Ad, Corporate Song, Or Even A Short Entertaining Clip
  • Easy Wireless Data Transfer
  • Verification Through Password And RFID Card.
  • Handles Up To 10,000 Fingerprints And Over 2 Lakh Transactions.
  • Data Management Is Easy
Download Brochure
MODELi-Kiosk 100 Plus
SURFACE FINISHING Acrylonitrile Butadiene Styrene (ABS)
TYPE OF SCANNER Optical
MICROPROCESSOR 600 MHz microprocessor
MEMORY256MB flash memory & 64MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm 260 x 70 x 320
STORAGE
Fingerprint templates10000
Transaction200000
ENROLLMENT & VERIFICATION
MethodsFingerprint (1:1, 1:N), Password & Card
Recommended Fingerprint per user ID2
Fingerprint placementAny angle
Verification time (sec)< 1
FAR (%)< 0.0001
FRR (%)< 1
CARD TECHNOLOGY
RFID: 64-bit, 125kHz, RF output power (EN300-330)Yes
MIFARE: MFIS50/S70, 13.56MHzMade to order
HID: HID 1326, 26-bit, 125kHzMade to order
COMMUNICATIONS
MethodTCP/IP, RS232, RS485, USB flash disk, WiFi (ETSI EN 300-328)
Baud Rates9600, 19200, 38400, 57600, 115200
Wiegand26-bit input/output
OPERATING ENVIRONMENT
Temperature (°C)0 ~ 45
Humidity (%)20 ~ 80
Power inputDC 12v 3A
TIME ATTENDANCE
SirenBuilt-in
Work CodesYes
MULTIMEDIA
VoiceYes
Display8.0” 65k color TFT touch screen panel
Short messagingYes
Music playback Yes
Movie playback Yes
Internal backup battery Yes (DC12V, 2000mAh)
ACCESS CONTROL
EM lock driving output DC 12V 3A / Relay output
Alarm output NO/NC
Antipassback Yes
VOICE / DISPLAY LANGUAGE (TERMINAL)English (Standard), Arabic, Indonesian, Spanish, Persian. Other languages are available upon request.
SOFTWAREIngress
